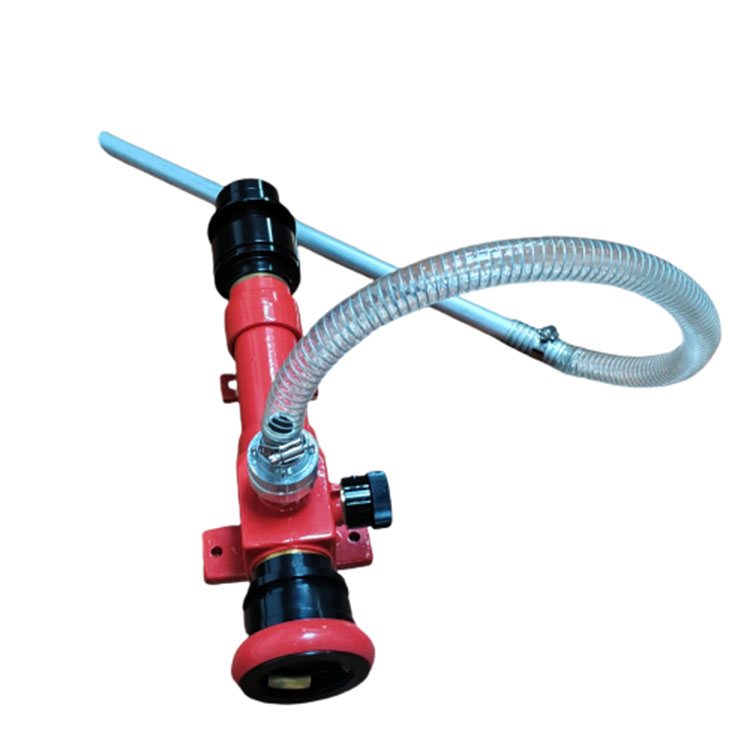

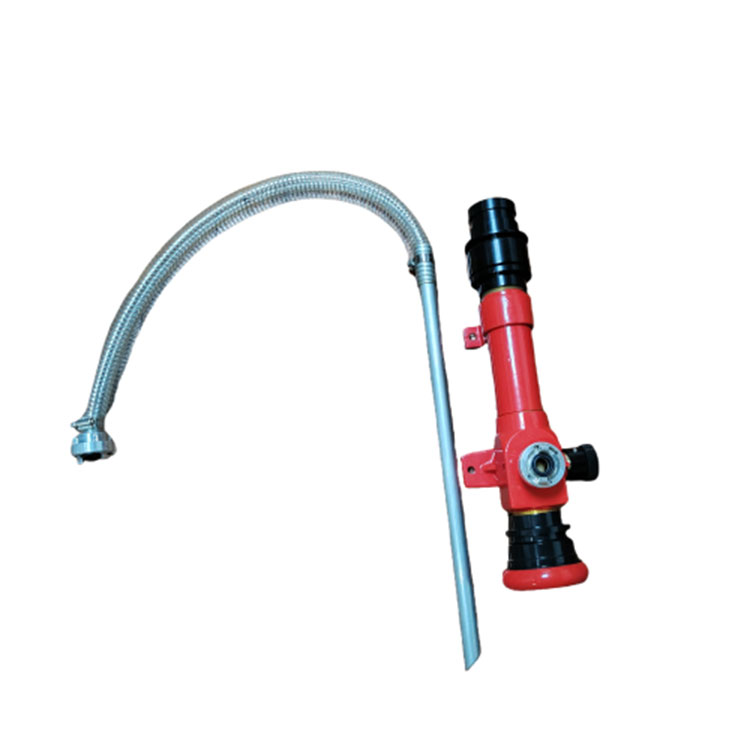

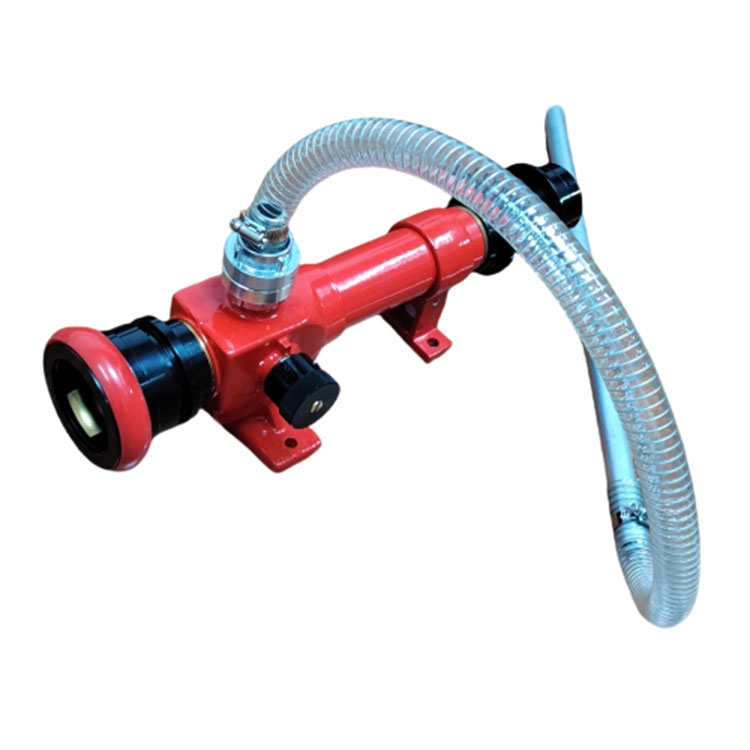

PLENT Machinery Firefighting In-Line Foam Eductor is used to induct the foam liquid concentrate in water stream to supply proportioned solution of the liquid concentrate and water, to the foam producing Equipment. Foam concentrate is drawn through a pick-up tube at a preset foam concentrate amount and then added into the water stream.
PLENT Machinery Firefighting In-Line Foam Eductor is used to induct the foam liquid concentrate in water stream to supply proportioned solution of the liquid concentrate and water, to the foam producing Equipment. Foam concentrate is drawn through a pick-up tube at a preset foam concentrate amount and then added into the water stream.
Plent Firefighting In-Line Foam Eductor is capable to provide 6 types of foam concentrate’s ratio. Featured with competitive price. Please see more info in below chart.
|
Product |
Firefighting In-Line Foam Eductor |
|
Model# |
FPC-SX |
|
Flow Rate |
250GPM 950LPM |
|
Working Pressure |
0.6~1.4Mpa (6~14 bar/85psi~205psi) |
|
Foam Ratio |
1% / 2%/ 3% / 4% / 5% / 6% |
|
Inlet (choices) |
1”/ 2”/ 2.5” |
|
Main Components |
Body (Brass) Pick up Hose (SS) Pick up Hose (Rubber) Coupling (Aluminum) |
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Machinery Firefighting In-Line Foam Eductor products, feel free to contact us any time.
