Low Expansion Foam Fire Monitor

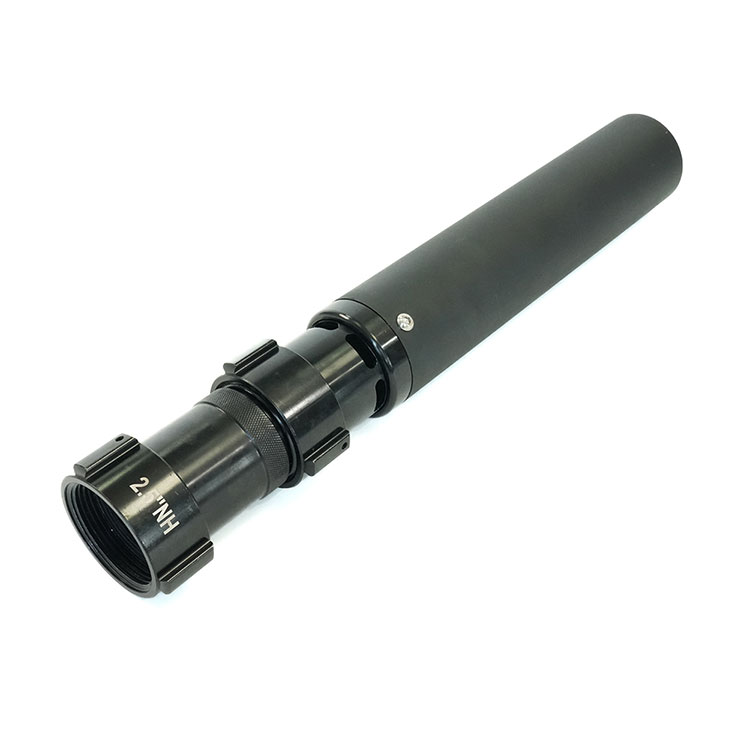

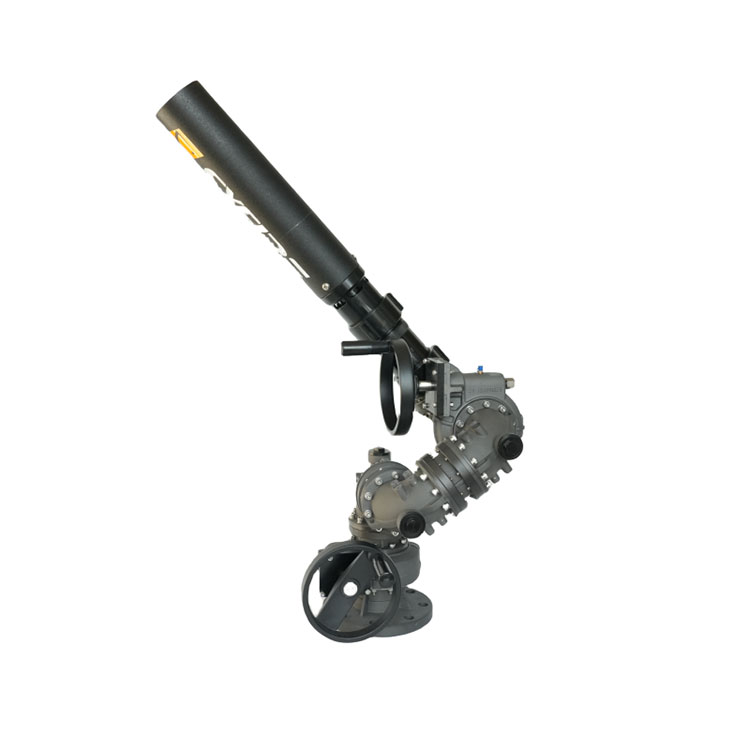

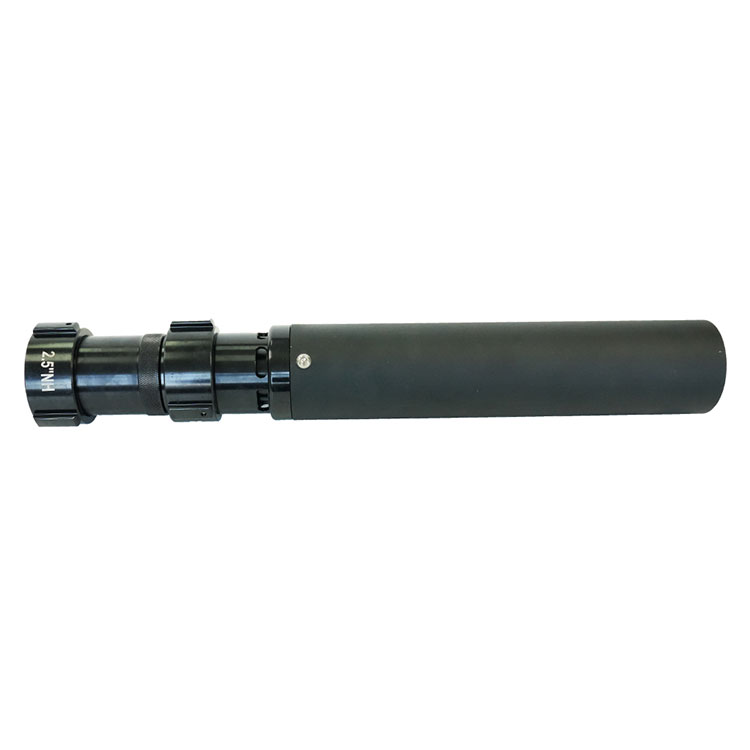

Plent Low Expansion Foam Fire Monitor PL8/20-BS is a manual operated foam fire monitor. With the foam nozzle, this low expansion foam fire nozzle is capable to have two spray pattern, ie. Straight Stream Spray Pattern and Foam Spray Pattern. The whole structure is made of had anodized aluminum alloy, it’s very durable in usage and reasonable in cost control.

Send Inquiry

Product Description


Low Expansion Foam Fire Monitor

Low price Plent Low Expansion Foam Fire Monitor PL8/20-BS is a manual operated foam fire monitor. With the foam nozzle, this low expansion foam fire nozzle is capable to have two spray pattern, ie. Straight Stream Spray Pattern and Foam Spray Pattern. The whole structure is made of had anodized aluminum alloy, it’s very durable in usage and reasonable in cost control.



Plent Low Expansion Foam Fire Monitor’s inlet assembly flange is customized. If customer has special need on this part, please notify our sales firstly. For more info., please kindly refer to below tech data sheet.



Product

 Low Expansion Foam Fire Monitor

Model#

PL8/20-BS

PL8/30-BS

PL8/40-BS

Working Pressure

8Bar / 116PSI

8Bar / 116PSI

8Bar / 116PSI

Flow Rate

1200lpm (317GPM)

1800lpm (475GPM)

2400lpm (635GPM)

Max Reach

≥53m (water)

≥48m (foam)

≥60m (water)

≥55m (foam)

≥65m (water)

≥60m (foam)

Travel Range

  0°~360°(Horizontally)/-45°~+75°(vertically, customized service available)

Waterway Size

 2.5” (63.5mm)

Jetting Pattern

 Jet or Foam

Max Fog Angle

 120°

Product Material

 Aluminum Alloy (Monitor Body and Nozzle), Bakelite (Dual handwheel)

Monitor Inlet

 2.5” Flange or Bigger size (available for customized design)

Monitor Outlet

 2.5” (63.5 mm)

Weight (N.W.)

 12.5 kg (27.5 lbs)

Country of Origin

 Made in China

Trademark

 SXFIRE or Customized



Plent Low Expansion Foam Fire Monitor- Product Advantage


1.Durable and Light Alloy Construction

2.Efficient cast-in turning vane design

3.Compact and easy to operate

4.Experienced R&D Team for design and aftersales service

5.Ideal for marine, offshore, industrial and other corrosive environment

6.1-Year Warranty


Application


● Oil & Gas

● Fuel Storage Area

● Fire & Rescue

● Mining

● Sea Conditions

● Chemical Industry



For More info about Ningbo Plent Low Expansion Foam Fire Monitor products, feel free to contact us any time.
