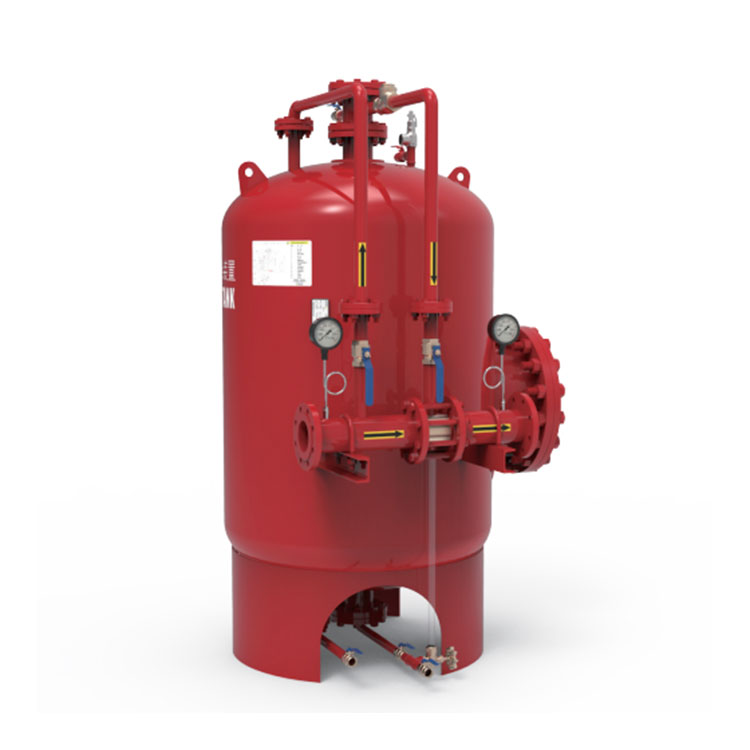

Durable Plent Vertical Foam Bladder Tanks are one of the main categories of Plent Machinery’s Foam Equipment. Plent standard Vertical Bladder Tanks’ capacity is up to 3000L. However, if there’s a customer required certain capacity occur, our R&D team will come up with the solution. With our own factory, Plent Machinery is capable to provide products with most competitive prices.
Durable Plent Vertical Foam Bladder Tanks are one of the main categories of Plent Machinery’s Foam Equipment. Plent standard Vertical Bladder Tanks’ capacity is up to 3000L. However, if there’s a customer required certain capacity occur, our R&D team will come up with the solution. With our own factory, Plent Machinery is capable to provide products with most competitive prices.
Plent Vertical Foam Bladder Tank’s rating mark is customized. For more info., please kindly refer to below tech data sheet.
Product |
Vertical Foam Bladder Tank |
Model# |
PHYML-SX |
Capacity |
200L/500L/1000L/1500L/2500L/3000L Customized Service is Available |
Working Pressure |
0.8~1.2Mpa (8~12bar/116psi~175psi) |
Foam Ratio |
3% / 6% |
Flow Rate |
4~64 LPS |
Tank Style |
Vertical |
Main Components |
Tank Shell (Carbon Steel) Bladder (Neoprene Polymers) Proportioner (Carbon Steel) Water / Foam Pipe (Galvanized Pipe/SS304) Pressure Gage (Brass) Ball Valve Drain Valve Foam Discharge Valve Man Hole Tube Evacuation Valve Safety Valve Filling Hole |
1.Legs are provided with fixing holes
2.Product design Pressure 12 Bar
3.Bladder material polyester reinforced hypalon-neoprene polymers
4.Bladder tanks are designed oversized to allow concentrate thermal expansion (volume expansion allowance)
5.Stainless Steel Rating Mark (Customized service is available)
6.Relief valve provided on the water side
7.1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Plent Vertical Foam Bladder Tank products, feel free to contact us any time.
