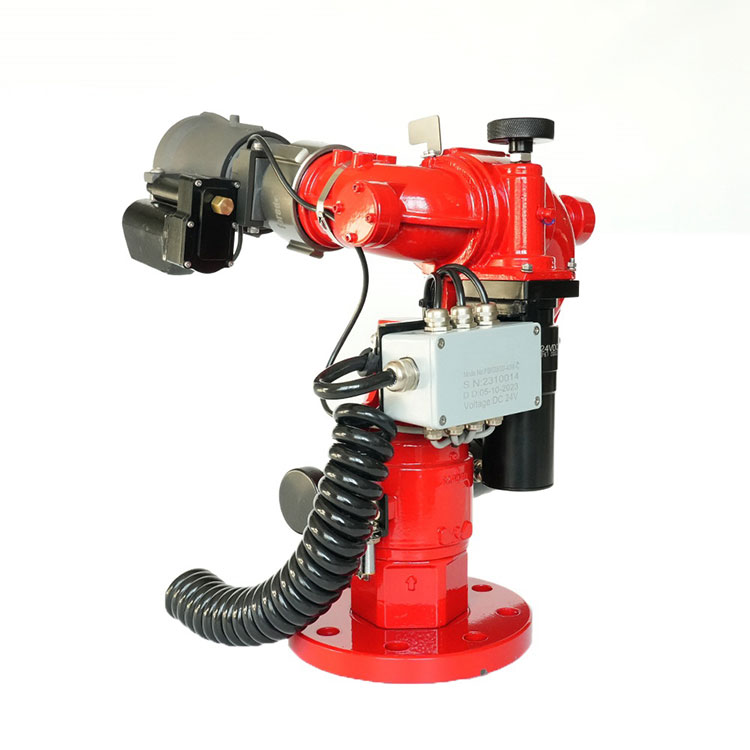

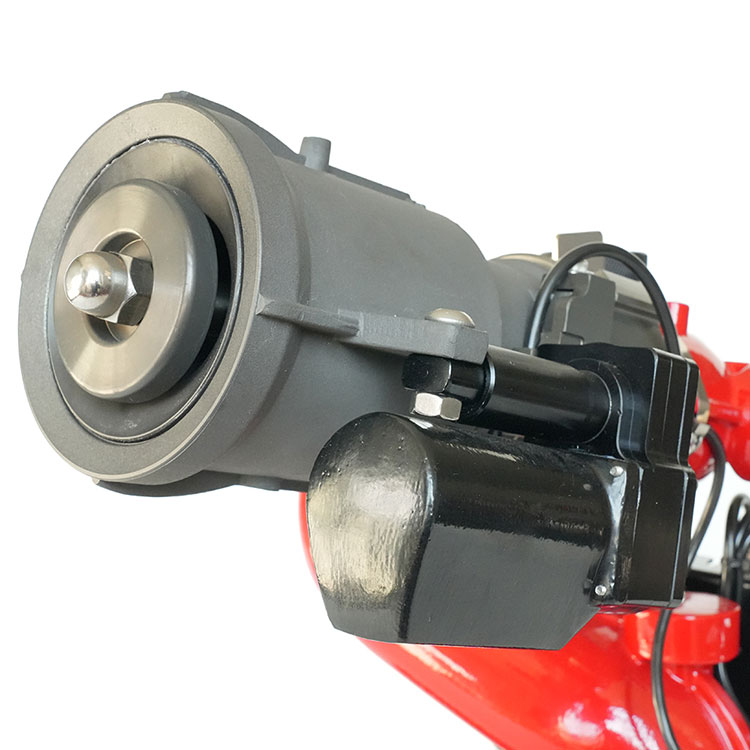

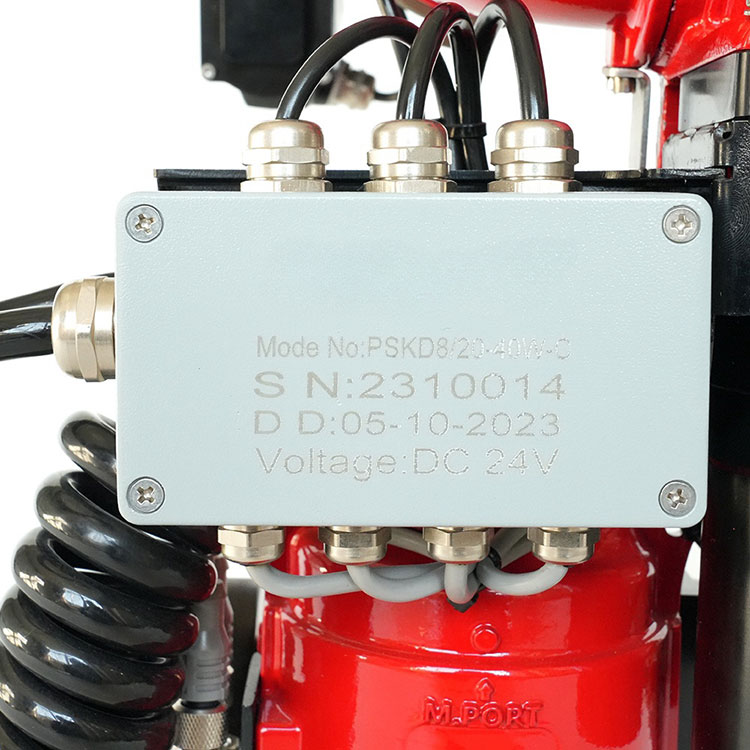

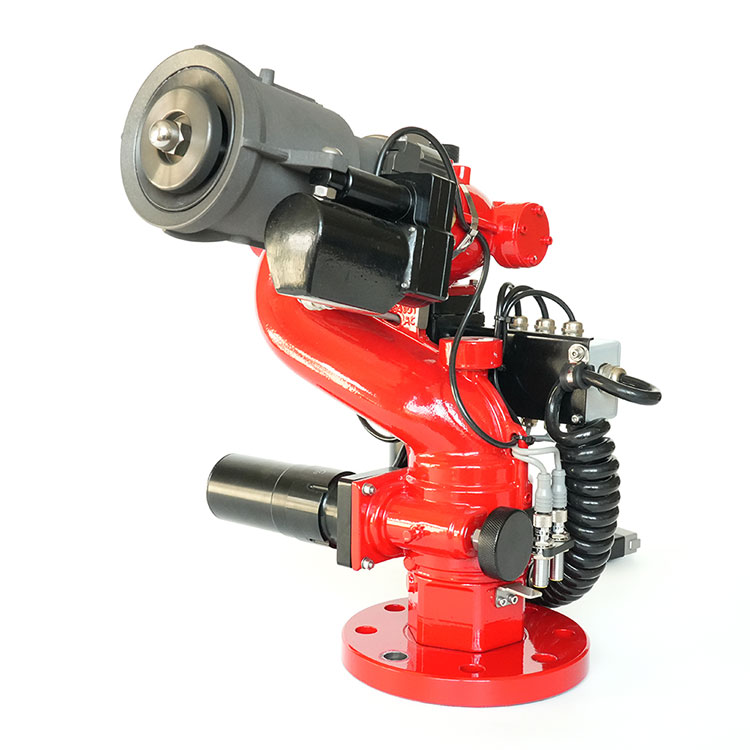

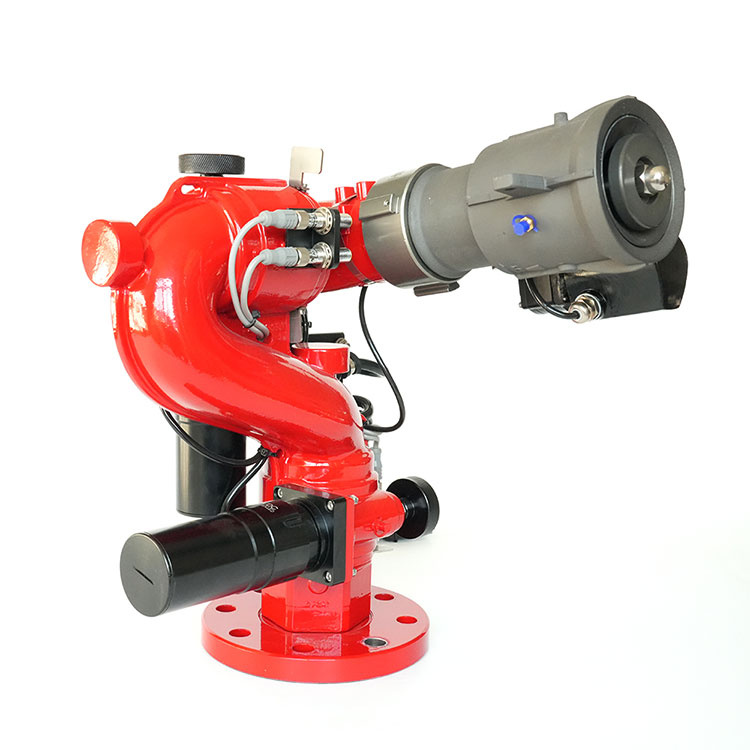

Plent Wireless Fixed Fire Monitor applied advanced wireless remote control facilities to realize personnel/users’ “remote-control” of our fire monitor. Furthermore, this operation mode will lower potential risk of personnel’s injury from manual operation. Plent wireless fixed fire monitor is a whole package product, containing monitor body, nozzle, remote, control unit, cable set. This will be competitive with current models in the market. Customer will be no need to buy extra units.
Plent Wireless Fixed Fire Monitor – C Series is compatible with Plent constant flow spray nozzle,. Adjustable flow spray nozzle. This will flexibly meet different customer’s requirement. For More Info., please kindly refer to below tech data sheet.
|
Product |
Plent Fixed Electric Fire Monitor-C Series |
||
|
Model |
PSKD8/20W-C |
PSKD8/30W-C |
PSKD8/40W-C |
|
Working Pressure |
8Bar / 116PSI |
8Bar / 116PSI |
8Bar / 116PSI |
|
Flow Rate |
1200lpm (320GPM) |
1800lpm (475GPM) |
2400lpm (635GPM) |
|
Max Reach |
≥53m |
≥60m |
≥65m |
|
Flow Tolerance |
+10% |
||
|
Travel Range |
0°~360° (Horizontally)/-45°~+90°(vertically) |
||
|
Turning Speed |
12°/sec. (Horizontally) / 12°/sec.(Vertically) |
||
|
Jetting Pattern |
Jet or Fog Spray |
||
|
Max Fog Angle |
120° |
||
|
Working Voltage |
AC220V or DC 12V/24V (customized available) |
||
|
Monitor Inlet |
2.5”Flange or Bigger Size ( available for customized design) |
||
|
Monitor Outlet |
2.5”(63.5mm) |
||
|
Weight （N.W.） |
18.5kg (50.8 lbs) |
||
|
Waterway Size |
2.5”(63.5mm) |
||
|
Product Material |
Aluminum Alloy (Nozzle and Monitor Body) |
||
|
Trademark |
Shengxin Firepro Tech or Customized |
||
1. Durable and Light Product Construction
2. High Waterproof Protection for Electric Parts
3. Imported Key Parts (Motor and Sensor)
4. Flexible Oscillation and Travel Limit Setting
5. Extra Manual Operation Function for emergency case
6. Professional Engineer Team for Aftersales and Tech Supports
7. Reliable, Leakproof DT connector for easy cable connection.
8. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Wireless Fixed Fire Monitor products, feel free to contact us any time.
