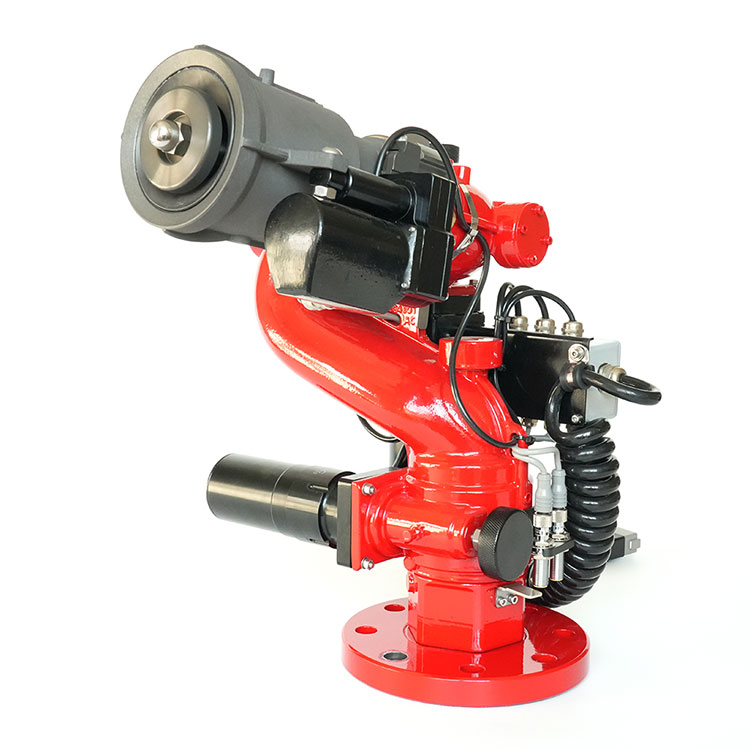

Plent Electric Fog Fire Monitor is capable toswitch straight stream spray pattern to Fog spray pattern via buttons on remote units. This is quite simple and safe for users’ operation in harsh environment. Built with anti-corrosion aluminum alloy, Plent Electric Fog Fire Nozzle is a fully sealed integrated electrical control system with waterproof locking connectors from all motors, power, and control connections to withstand harsh environments.
Plent Electric Fog Fire Monitor is capable toswitch straight stream spray pattern to Fog spray pattern via buttons on remote units. This is quite simple and safe for users’ operation in harsh environment. Built with anti-corrosion aluminum alloy, Plent Electric Fog Fire Nozzle is a fully sealed integrated electrical control system with waterproof locking connectors from all motors, power, and control connections to withstand harsh environments.
Plent Firefighting Electric Fire Monitor – C Series’ vertical travel range is-45°~+90°. For more info., please kindly refer to below tech data sheet.
|
Product |
Plent Electric Fog Fire Monitor-C Series |
||
|
Model# |
PSKD8/20W-C |
PSKD8/30W-C |
PSKD8/40W-C |
|
Working Pressure |
8Bar / 116PSI |
8Bar / 116PSI |
8Bar / 116PSI |
|
Flow Rate |
1200lpm (320GPM) |
1800lpm (475GPM) |
2400lpm (635GPM) |
|
Max Reach |
≥53m |
≥60m |
≥65m |
|
Flow Tolerance |
+10% |
||
|
Travel Range |
0°~360° (Horizontally)/-45°~+90°(vertically) |
||
|
Turning Speed |
12°/sec. (Horizontally) / 12°/sec.(Vertically) |
||
|
Jetting Pattern |
Jet or Fog Spray |
||
|
Max Fog Angle |
120° |
||
|
Working Voltage |
AC220V or DC 12V/24V (customized available) |
||
|
Monitor Inlet |
2.5”Flange or Bigger Size ( available for customized design) |
||
|
Monitor Outlet |
2.5”(63.5mm) |
||
|
Weight （N.W.） |
18.5kg (50.8 lbs) |
||
|
Waterway Size |
2.5”(63.5mm) |
||
|
Product Material |
Aluminum Alloy (Nozzle and Monitor Body) |
||
|
Trademark |
Shengxin Firepro Tech or Customized |
||
1. Durable and Light Product Construction
2. High Waterproof Protection for Electric Parts
3. Imported Key Parts (Motor and Sensor)
4. Flexible Oscillation and Travel Limit Setting
5. Extra Manual Operation Function for emergency case
6. Professional Engineer Team for Aftersales and Tech Supports
7. Reliable, Leakproof DT connector for easy cable connection.
8. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Electric Fog Fire Monitor products, feel free to contact us any time.
