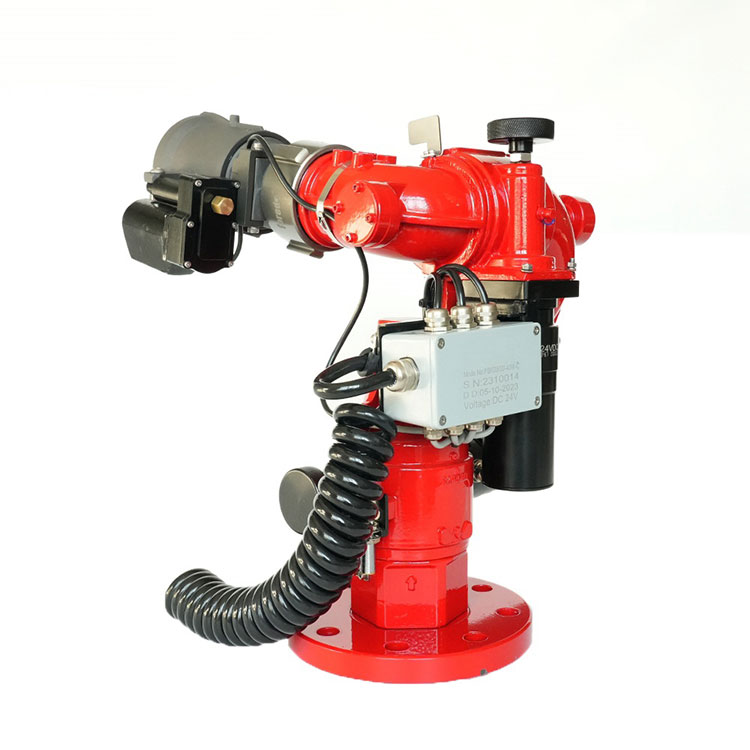

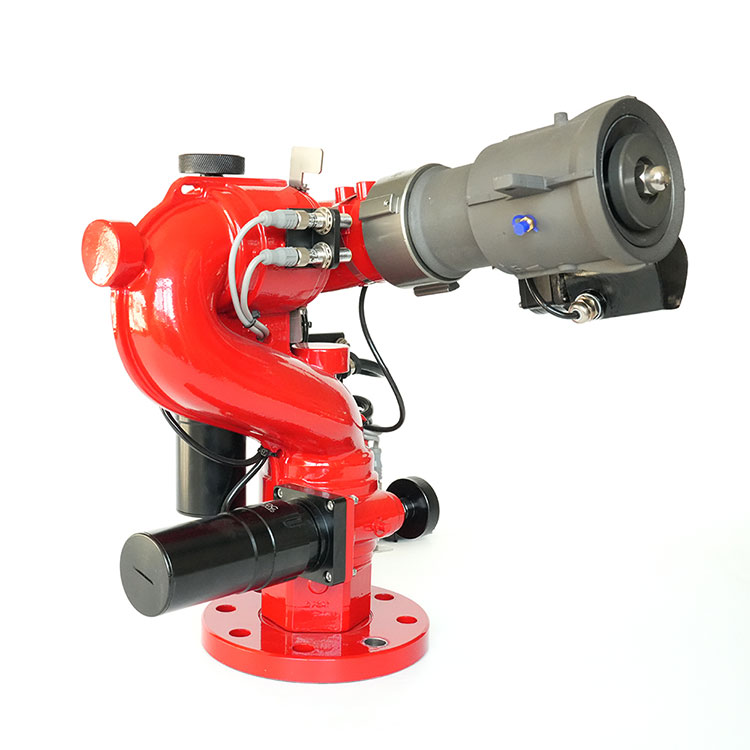

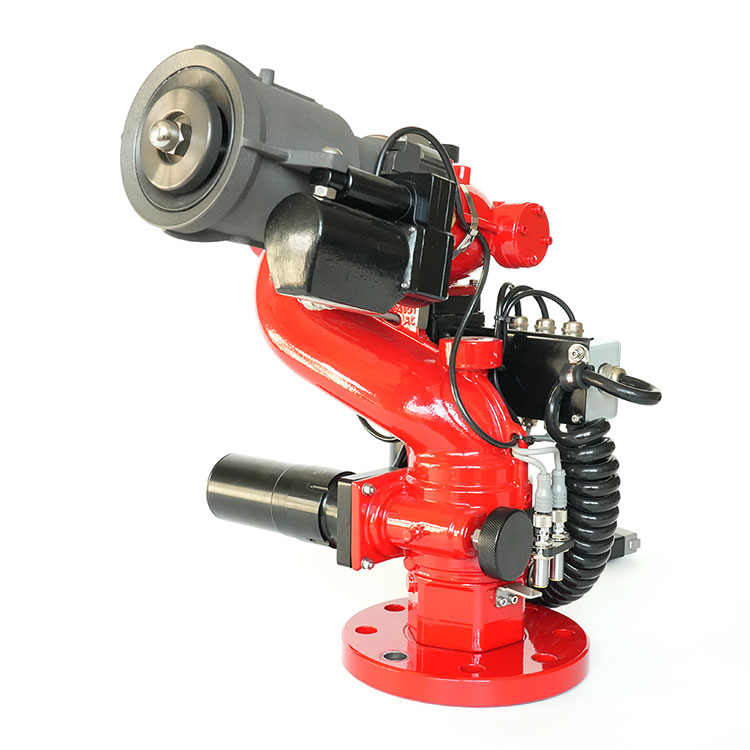

Plent Electric Fire Monitor are designed as compact and reliabe equipment. Horizontal and vertical travel is accomplished by remotely controlled electric motors. Besides, Plent Electric Fire Monitor are also with emergency safe manual operation knobs. Users can also control the spray pattern via remote buttons. This is really a simple operation mode for each user.
|
Product |
Plent Electric Fire Monitor-C Series |
||
|
Model# |
PSKD8/20W-C |
PSKD8/30W-C |
PSKD8/40W-C |
|
Working Pressure |
8Bar / 116PSI |
8Bar / 116PSI |
8Bar / 116PSI |
|
Flow Rate |
1200lpm (320GPM) |
1800lpm (475GPM) |
2400lpm (635GPM) |
|
Max Reach |
≥53m |
≥60m |
≥65m |
|
Flow Tolerance |
+10% |
||
|
Travel Range |
0°~360° (Horizontally)/-45°~+90°(vertically) |
||
|
Turning Speed |
12°/sec. (Horizontally) / 12°/sec.(Vertically) |
||
|
Jetting Pattern |
Jet or Fog Spray |
||
|
Max Fog Angle |
120° |
||
|
Working Voltage |
AC220V or DC 12V/24V (customized available) |
||
|
Monitor Inlet |
2.5”Flange or Bigger Size ( available for customized design) |
||
|
Monitor Outlet |
2.5”(63.5mm) |
||
|
Weight （N.W.） |
18.5kg (50.8 lbs) |
||
|
Waterway Size |
2.5”(63.5mm) |
||
|
Product Material |
Aluminum Alloy (Nozzle and Monitor Body) |
||
|
Trademark |
Shengxin Firepro Tech or Customized |
||
Plent Firefighting Electric Fire Monitor – C Series has various color selection for customer’s preference, including red, yellow, blue, grey, etc. Fore more info., please kindly refer to below tech data sheet.
1. Durable and Light Product Construction
2. High Waterproof Protection for Electric Parts
3. Imported Key Parts (Motor and Sensor)
4. Flexible Oscillation and Travel Limit Setting
5. Extra Manual Operation Function for emergency case
6. Professional Engineer Team for Aftersales and Tech Supports
7. Reliable, Leakproof DT connector for easy cable connection.
8. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Electric Fire Monitor products, feel free to contact us any time.
