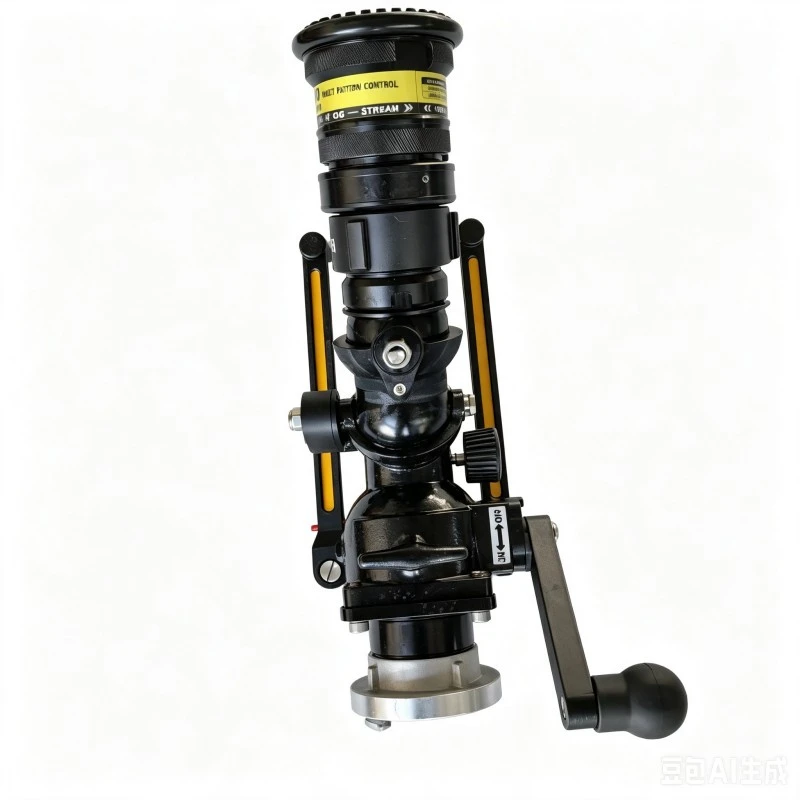

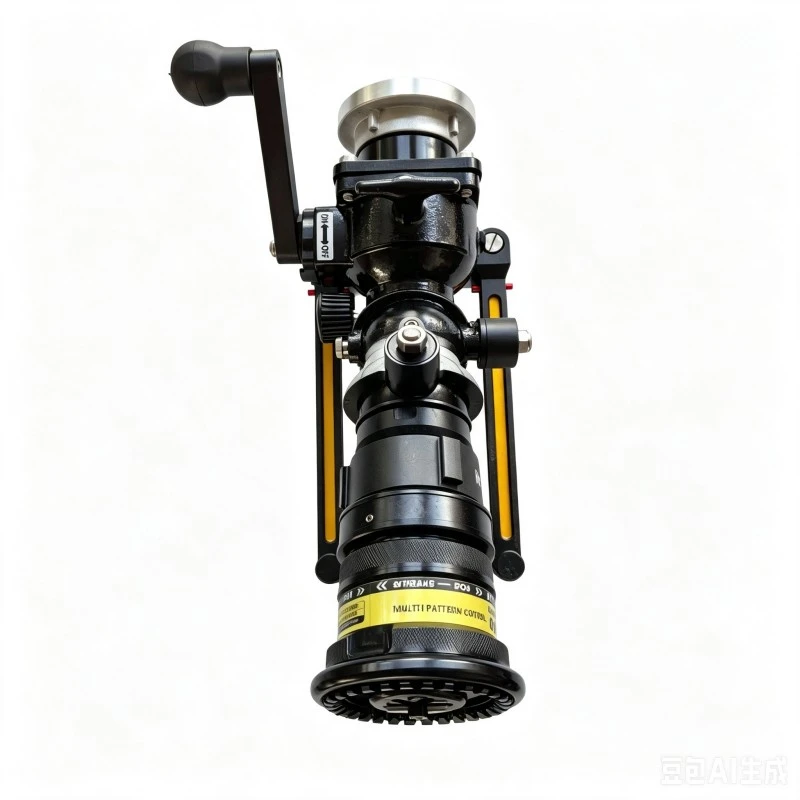

Compact Portable Fire Monitor serves multiple functions including fire extinguishment, surface cooling, and water barrier formation, and supports both manned manual operation and unattended automatic deployment based on on-site fire scenarios.
Manufacturing of this Compact Portable Fire Monitor strictly complies with the ISO 9001 quality management system. Every finished product undergoes comprehensive performance inspection prior to delivery, accompanied by a standard 12-month factory warranty.
The unit adopts a single 2.5-inch water inlet with multiple configurable connection interfaces. Full technical parameters are detailed in the technical specification sheet attached below for your reference.
|
Product Name |
Plent Compact Portable Fire Monitor |
||
|
Model# |
PSY6/20W-B |
PSY6/30W-B |
PSY8/40W-B |
|
Working Pressure |
6 Bar / 87 PSI |
6 Bar / 87 PSI |
8 Bar / 116 PSI |
|
Flow Rate |
1200 LPM (317 GPM) |
1800 LPM (475 GPM) |
2400 LPM (634 GPM) |
|
Max Reach |
≥50m |
≥63m |
≥71m |
|
Travel Range (Horizontally) |
-20°~+20° |
||
|
Travel Range (Vertically) |
+20°~+70° (Personnel Operating) / +30°~+70° (without Personnel Operating) |
||
|
Max Fog Angle |
120° |
||
|
Jetting Pattern |
Jet - Narrow Fog – Wide Fog |
||
|
Monitor Inlet |
2.5” (available for customized design) |
||
|
Monitor Outlet |
2.5” (63.5 mm) |
||
|
Product Weight (N.W.) |
10 kg |
||
|
Product Material |
Aluminum Alloy (Monitor Body and Nozzle) |
||
|
Connection Type |
Ghost, Storz, BS336, NH etc |
||
|
Trademark |
SXFIRE or Customized |
||
1. Durable and Light Alloy Construction
2. Efficient cast-in turning vane design
3. Compact and easy to operate
4. Experienced R&D Team for design and aftersales service
5. Ideal for Fire Truck, Fireman application

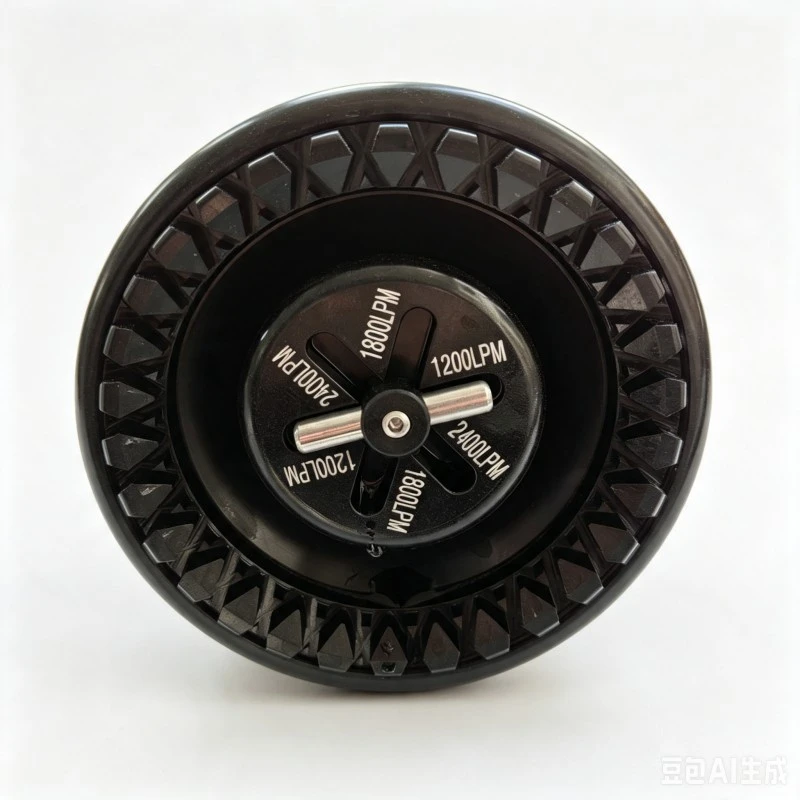

6. Multifunction nozzle with adjustable Flow
7. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Plent Compact Portable Fire Monitor products, feel free to contact us any time.
