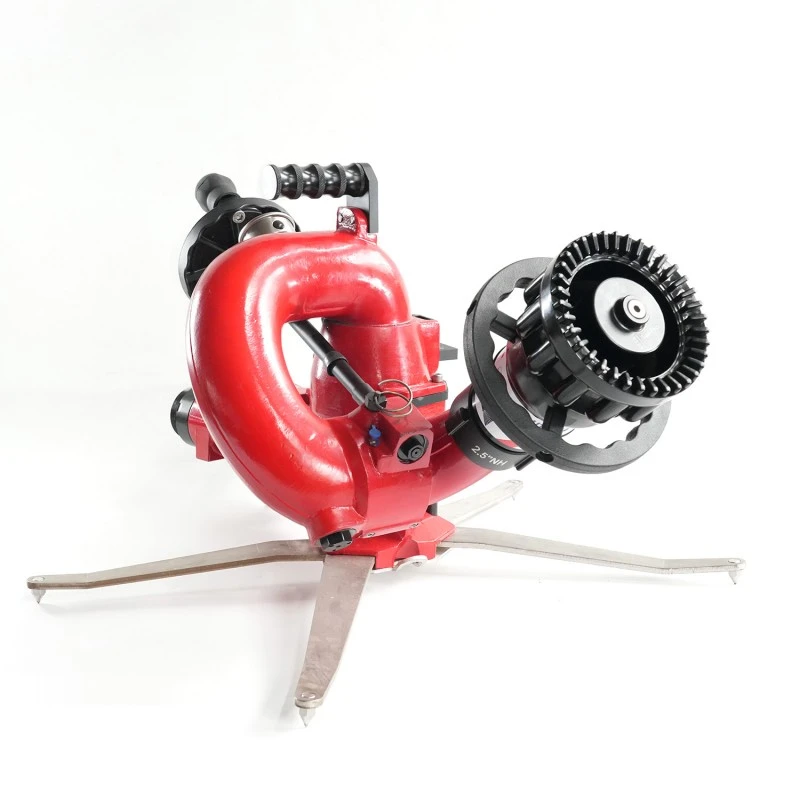

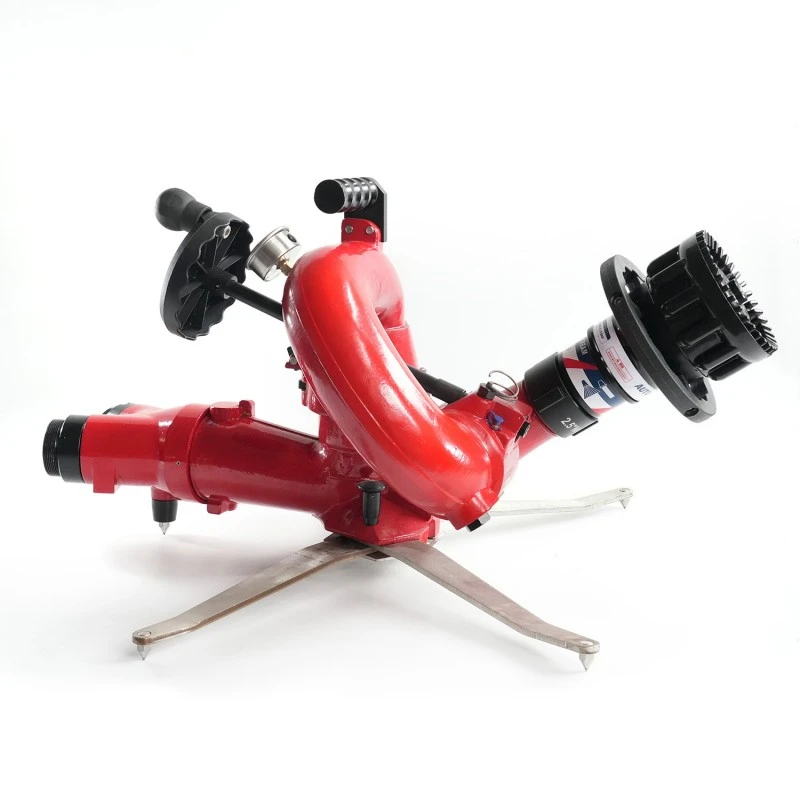

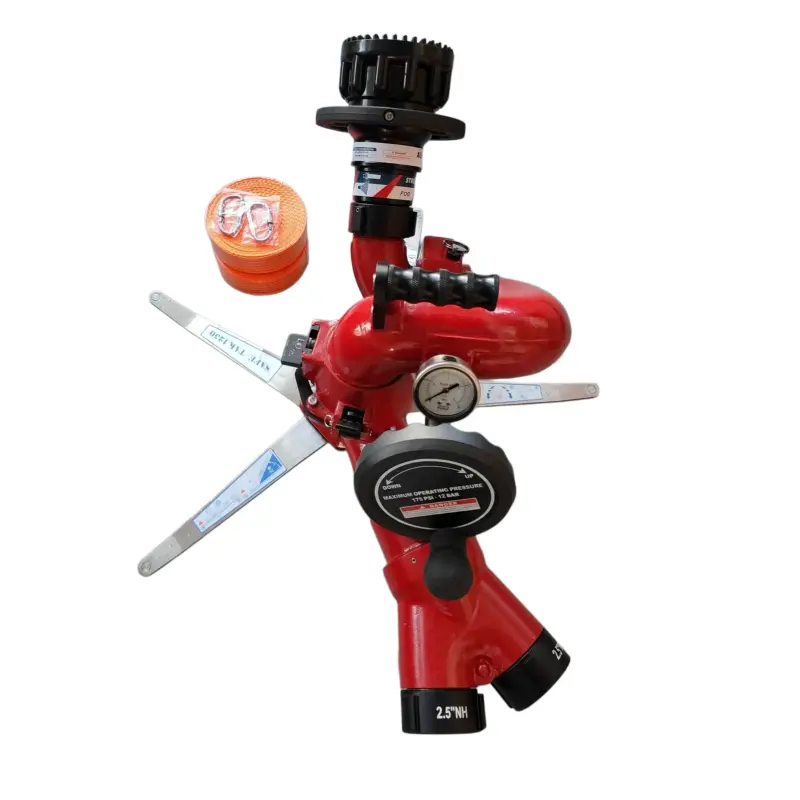

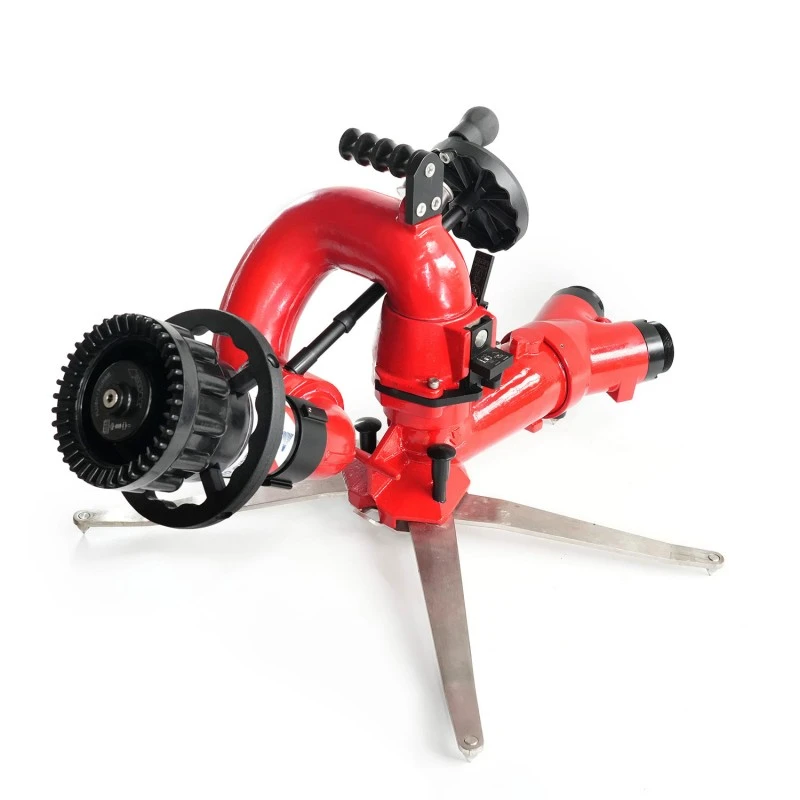

Its low-profile structural layout enables firefighters to operate the equipment steadily during fire disposal. This portable jet/fog fire monitor PSY10/80W-SX features high structural durability together with easy assembly, supporting rapid fire suppression deployment on site.
This portable jet/fog fire monitor PSY10/80W-SX can perform multiple functions including fire extinguishing, equipment cooling and water curtain shielding, and supports both manned manual operation and unattended automatic working modes according to actual fire-fighting demands.
|
Product Name |
4800LPM Portable Water Fire Monitor |
|
Model# |
PSY10/80W-SX |
|
Working Pressure |
10Bar / 145PSI |
|
Flow Rate |
4800lpm (1270GPM) |
|
Max Reach |
≥80m @10 Bar with Flow 4800LPM |
|
Jetting Pattern |
Jet or Fog Spray |
|
Max Fog Angle |
120° |
|
Travel Range |
0°~90° (Horizontally)/30°~+80°(vertically) |
|
Drainage Valve |
Drainage valve would work automatically when the pressure decreases to 3.5bar |
|
Monitor Inlet |
Double Inlet (inlet size: 3” (76.2mm)), available for 360° swivel |
|
Operation Mode |
Manually Operated |
|
Weight （N.W.） |
32kg (70.4 lbs) |
|
Feature |
3 supporting brackets |
|
Product Material |
Aluminum Alloy (Nozzle); Stainless Steel (Monitor Body); Steel(Supporting Bracket & Anti-skid Nails) |
1. Durable and Light Alloy Construction
2. Efficient cast-in turning vane design
3. Compact and easy to operate
4. Experienced R&D Team for design and aftersales service
5. Ideal for Fire Truck, Fireman application
6. Multifunction nozzle with adjustable Flow
7. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● ;Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
Our whole manufacturing process strictly complies with the ISO 9001 quality management system. Every fire monitor will pass comprehensive performance testing prior to delivery. We provide a full 12-month warranty for all our products.
For More info about Plent 4800LPM Portable Water Fire Monitor products, feel free to contact us any time.
