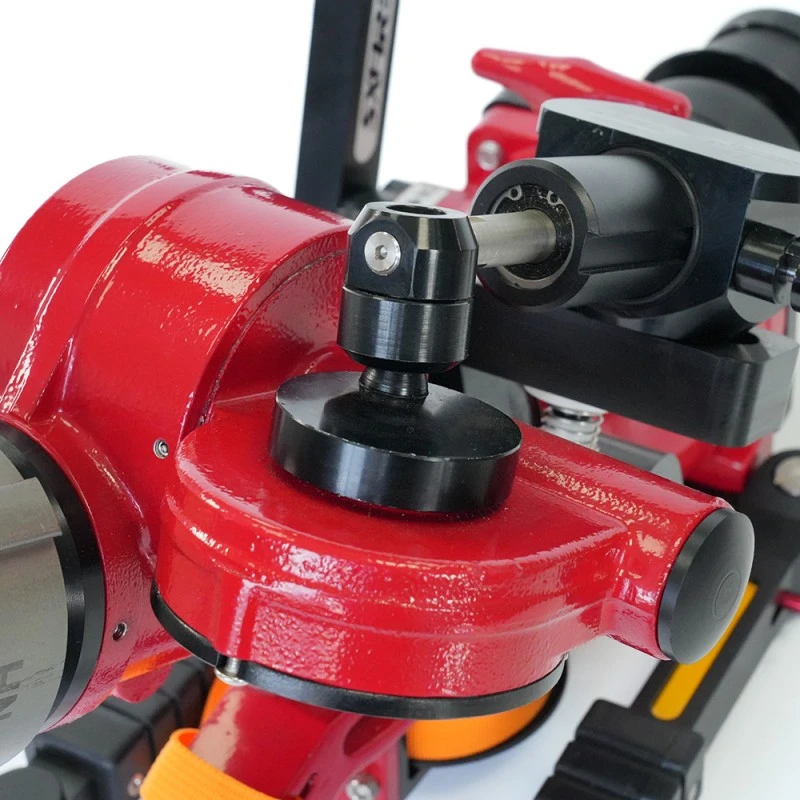

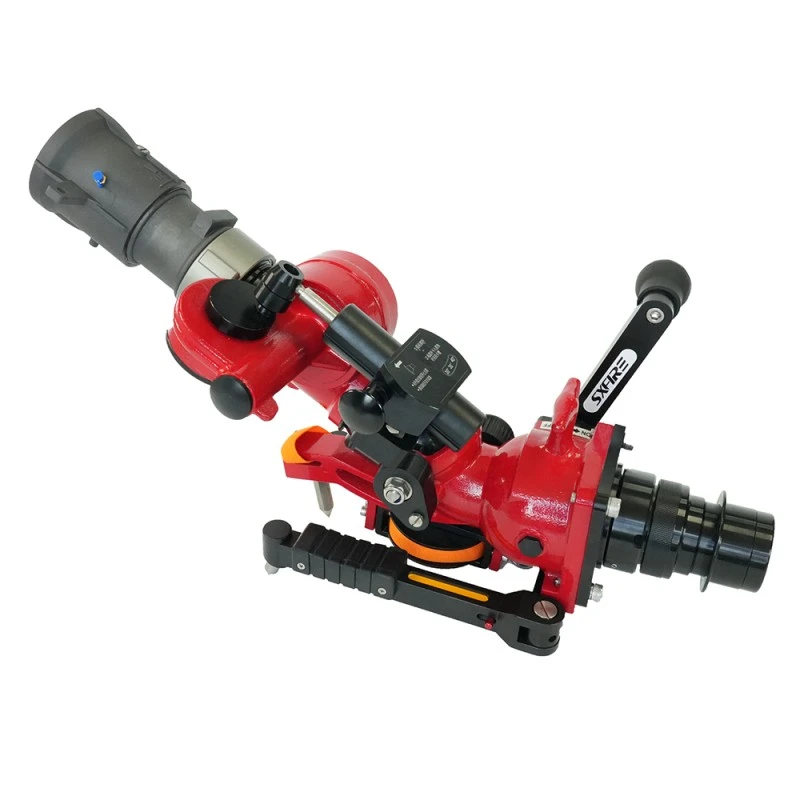

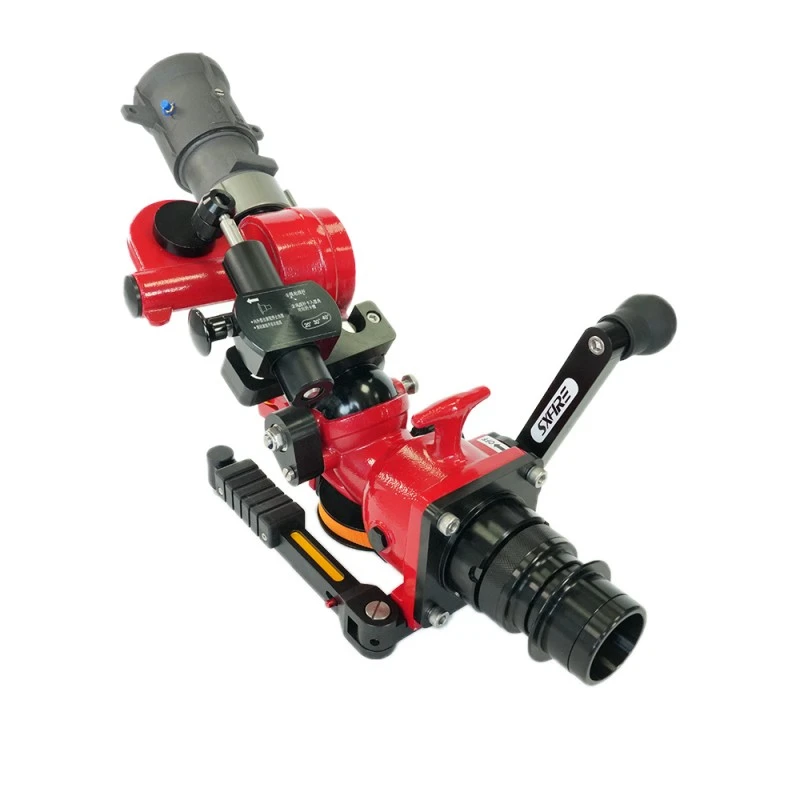

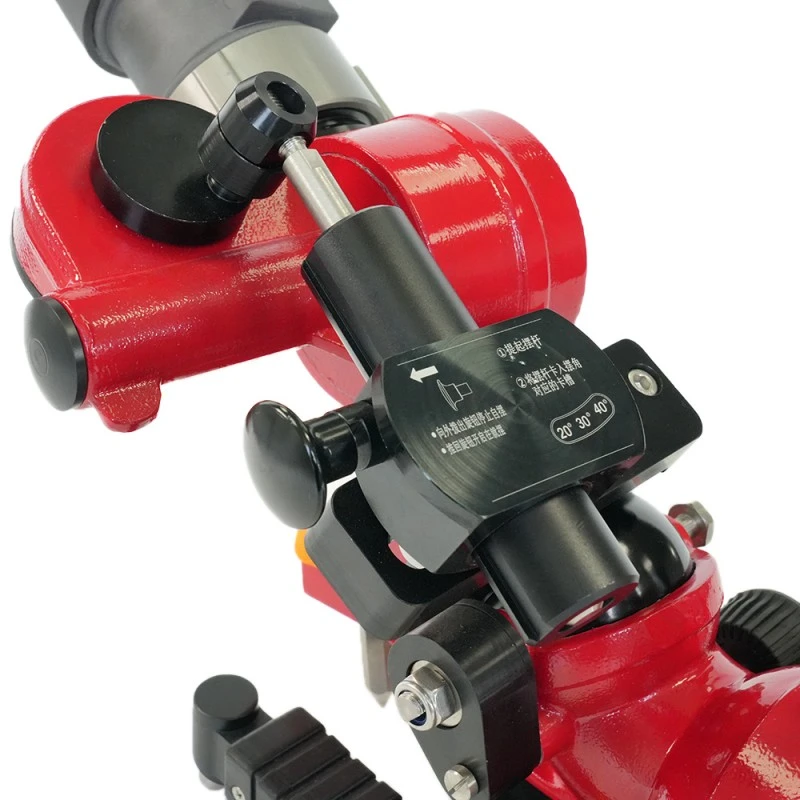

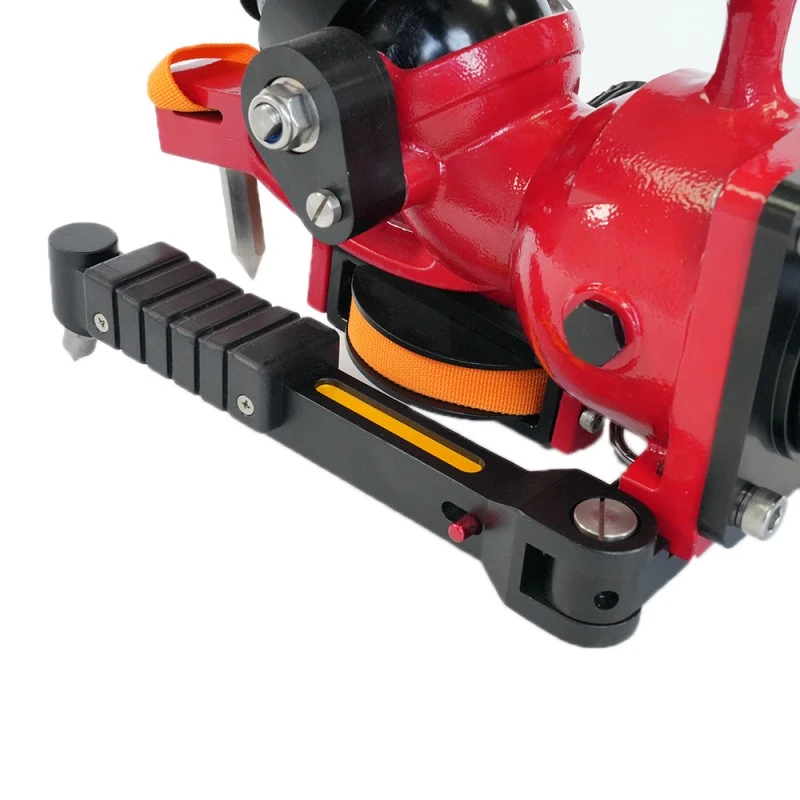

Plent Portable Oscillation Fire Monitor Versatile in fire suppression, heat cooling and water curtain protection, adaptable to manned manual control or unmanned automatic working. The oscillation angle is also optional per actual usage.
All Plent Portable Oscillation Fire Monitors are manufactured per ISO 9001 standards with full pre-delivery testing, covered by a one-year warranty period. A 2.5-inch single inlet is configurable with different connector types, with full technical data shown in the datasheet below.
|
Product Name |
Plent Portable Oscillation Fire Monitor |
||
|
Model# |
PSY6/20W-B |
PSY6/30W-B |
PSY8/40W-B |
|
Working Pressure |
6 Bar / 87 PSI |
6 Bar / 87 PSI |
8 Bar / 116 PSI |
|
Flow Rate |
1200 LPM (317 GPM) |
1800 LPM (475 GPM) |
2400 LPM (634 GPM) |
|
Max Reach |
≥50m |
≥63m |
≥71m |
|
Travel Range (Horizontally) |
-20°~+20° |
||
|
Travel Range (Vertically) |
+20°~+70° (Personnel Operating) / +30°~+70° (without Personnel Operating) |
||
|
Max Fog Angle |
120° |
||
|
Jetting Pattern |
Jet or Fog |
||
|
Monitor Inlet |
2.5” (available for customized design) |
||
|
Monitor Outlet |
2.5” (63.5 mm) |
||
|
Product Weight (N.W.) |
10 kg |
||
|
Product Material |
Aluminum Alloy (Monitor Body and Nozzle) |
||
|
Connection Type |
Ghost, Storz, Instantaneous, NH etc |
||
|
Trademark |
SXFIRE or Customized |
||
1. Durable and Light Alloy Construction
2. Efficient cast-in turning vane design
3. Compact and easy to operate
4. Experienced R&D Team for design and aftersales service
5. Ideal for Fire Truck, Fireman application
6. Multifunction nozzle with adjustable Flow
7. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about 1200-1800-2400LPM Plent Portable Oscillation Fire Monitor products, feel free to contact us any time.
